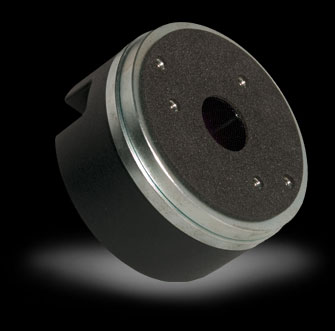

DRIVER FAITAL HF10AK

NOMINAL SPECIFICATIONS

Throat Diameter    25,4 mm (1 in)
Overall Diameter    102 mm (4.02 in)
180° Mounting Holes Diameter (2xM6)    76 mm (2.99 in)
120° Mounting Holes Diameter (3xM6)    57 mm (2.24 in)
Depth    54 mm (2.13 in)
Net Weight    1.4 Kg (3.09 lb)
Shipping Box    147x130x82 mm (5.79x5.12x3.23 in)
Shipping Weight    1.48 Kg (3.26 lb)


TECHNICAL PARAMETERS


Nominal Impedance    8 ohm
Minimum Impedance    6.5 ohm
Nominal Power Handling *    60 W
Maximum Power Handling **    120 W
Minimum Crossover Frequency ***    1.3 kHz
Sensitivity (1W/1m) ****    110 dB
Frequency Range    0.8÷20 kHz
Voice Coil Diameter    44 mm (1.73 in)
Winding Material    Copper Clad Aluminium
Former Material    Kapton
Diaphragm Material    Ketone Polymer
Winding Depth    2.45 mm (0.10 in)
Magnetic Gap Depth    2.75 mm (0.11 in)
Flux Density    1.9 T
Re    5.8 ohm
Phase Plug Design    Annular
