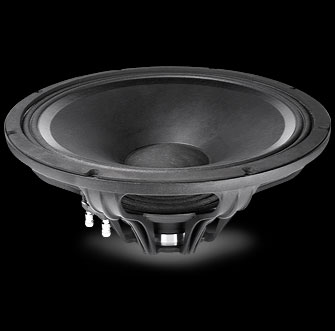

ALTOPARLANTE FAITAL 15FH500

THIELE & SMALL PARAMETERSFs     35 Hz
Re     5.1 Ohm
Qes     0.32
Qms     10.40
Qts     0.31
Vas     217.4 dm^3 (7.68 ft^3)
Sd     880 cm^2 (136.4 in^2)
Xmax *     9.25 mm
Xdamage **     16 mm
Mms     104 g
Bl     19.2 N/A
Le     1.3 mH
Mmd     89.7 g
Cms     0.2 mm/N
Rms     2.2 Kg/s
Eta Zero     2.8 %
EBP     109 Hz


NOMINAL SPECIFICATIONS

Nominal Diameter     380 mm (15 in)
Overall Diameter     393 mm (15.47 in)
Bolt Circle Diameter     374 mm (14.72 in)
Baffle Cutout Diameter     355 mm (13.98 in)
Depth     181.3 mm (7.14 in)
Flange and Gasket Thickness     13.7 mm (0.54 in)
Net Weight     4.4 Kg (9.7 lb)
Shipping Box
(Single Carton Box)     426x429x225 mm (16.8x16.9x8.9 in)
Shipping Weight     5 Kg (11 lb)
      ELECTRICAL SPECIFICATIONS

Nominal Impedance     8 Ohm
Minimum Impedance     6 Ohm
Nominal Power Handling ***     500 W
Maximum Power Handling ****     1000 W
Sensitivity (1W/1m)     98 dB
Frequency Range     35÷3150 Hz
Voice Coil Diameter     77 mm (3 in)
Winding Material     Cu
Former Material     Glass Fiber
Winding Depth     22 mm (0.87 in)
Magnetic Gap Depth     10.5 mm (0.41 in)
Flux Density     1.2 T
