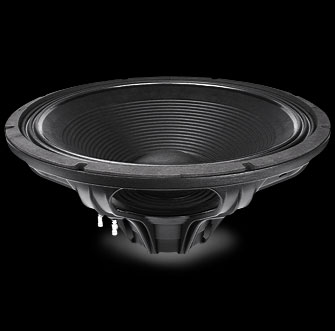

ALTOPARLANTE FAITAL 18HP1040 8ohm

THIELE & SMALL PARAMETERS

Fs     38 Hz
Re     5.5 Ohm
Qes     0.35
Qms     8.75
Qts     0.34
Vas     208.8 dm^3 (7.37 ft^3)
Sd     1166 cm^2 (180.7 in^2)
Xmax *     9.5 mm
Xdamage **     17.5 mm
Mms     163 g
Bl     24.5 N/A
Le     1.36 mH
Mmd     141 g
Cms     0.11 mm/N
Rms     4.42 Kg/s
Eta Zero     3.14 %
EBP     109 Hz


NOMINAL SPECIFICATIONS


Nominal Diameter     460 mm (18 in)
Overall Diameter     460 mm (18.11 in)
Bolt Circle Diameter     440 mm (17.32 in)
Baffle Cutout Diameter     422 mm (16.61 in)
Depth     202 mm (7.95 in)
Flange and Gasket Thickness     13.9 mm (0.55 in)
Net Weight     6.1 Kg (13.4 lb)
Shipping Box
(Single Carton Box)     536x536x293 mm (21.1x21.1x11.5 in)
Shipping Weight     7.4 Kg (16.3 lb)
      ELECTRICAL SPECIFICATIONS

Nominal Impedance     8 Ohm
Minimum Impedance     6.6 Ohm
Nominal Power Handling ***     1000 W
Maximum Power Handling ****     2000 W
Sensitivity (1W/1m)     99 dB
Frequency Range     38÷2500 Hz
Voice Coil Diameter     100 mm (4 in)
Winding Material     Al
Former Material     Glass Fiber
Winding Depth     23 mm (0.9 in)
Magnetic Gap Depth     12 mm (0.47 in)
Flux Density     1.3 T
